OPTcompact is an innovative, compact terminal, slightly larger than a smartphone, designed for self-service fuel transaction.
Equipped with magnetic stripe, chip, and contactless readers, it supports payments via credit cards, debit cards, Apple Pay, and Google Pay, without requiring users to download a new app or register on a website.
The terminal can be installed on the dispenser itself or on a dedicated stand; the latter option allows multiple dispensers to be managed simultaneously from a single payment device.
From the Home screen, users can change the language, start the refueling process, request a receipt or invoice, and view the fuel station’s prices.
The terminal drives users step by step through the entire refuelling payment process.
After selecting the desired dispenser and product, users are guided through the payment process. At the end of the main workflow, a summary screen displays the operation details.
OPTcompact | Oil is offered in two versions: Standalone and Embedded.

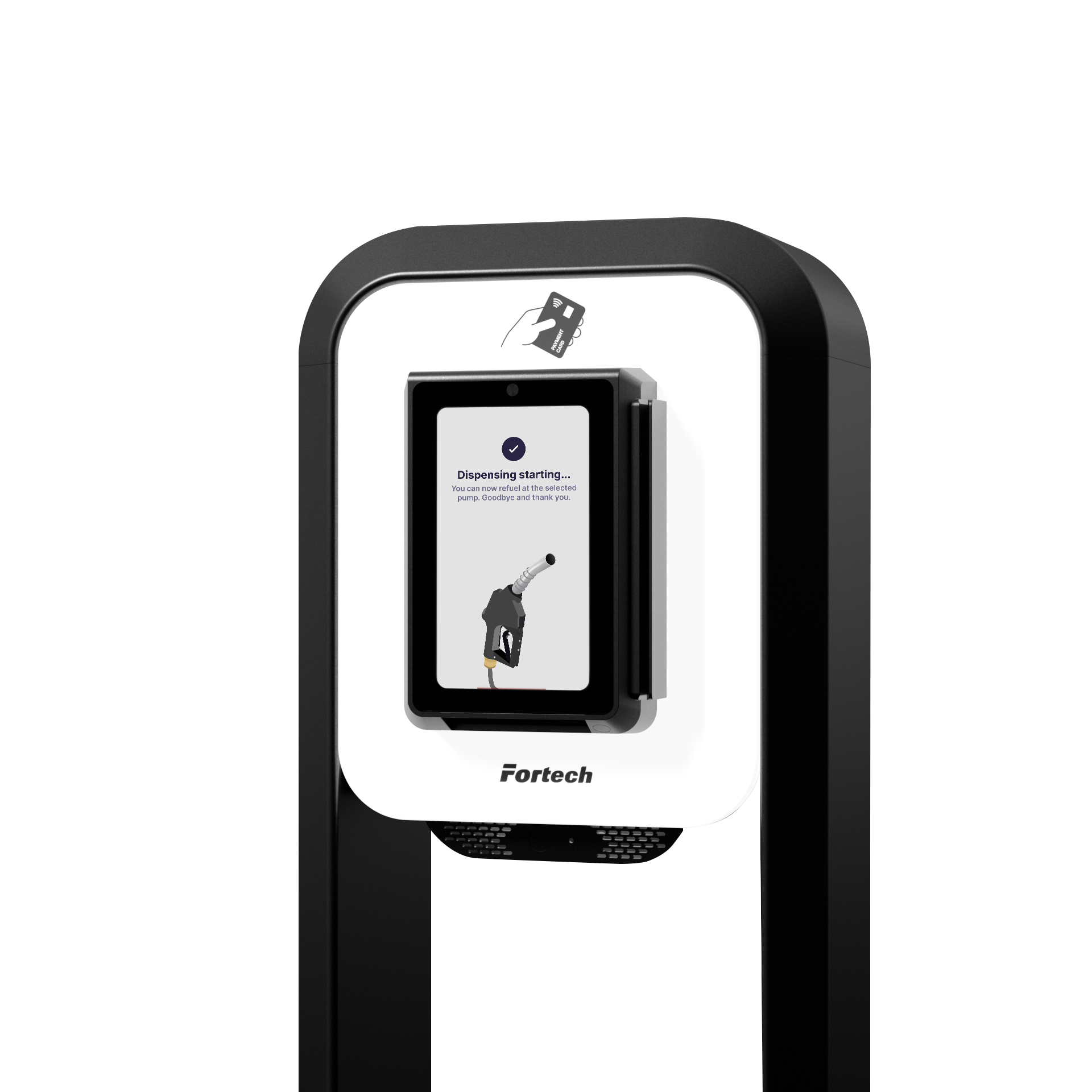

STANDALONE
In the Standalone version, the terminal is mounted on a dedicated pedestal: a sleek, single-piece design crafted from aluminium and anhracite powder-coated stainless steel. This configuration is ideal for managing multiple pumps from a central unit positioned anywhere within the service area.
EMBEDDED
In the Embedde version, the terminal is integrated directly into the pump. Users simply insert or tap their payment card on the reader to initiate the fueling process. All receipt and invoice functions are managed digitally.

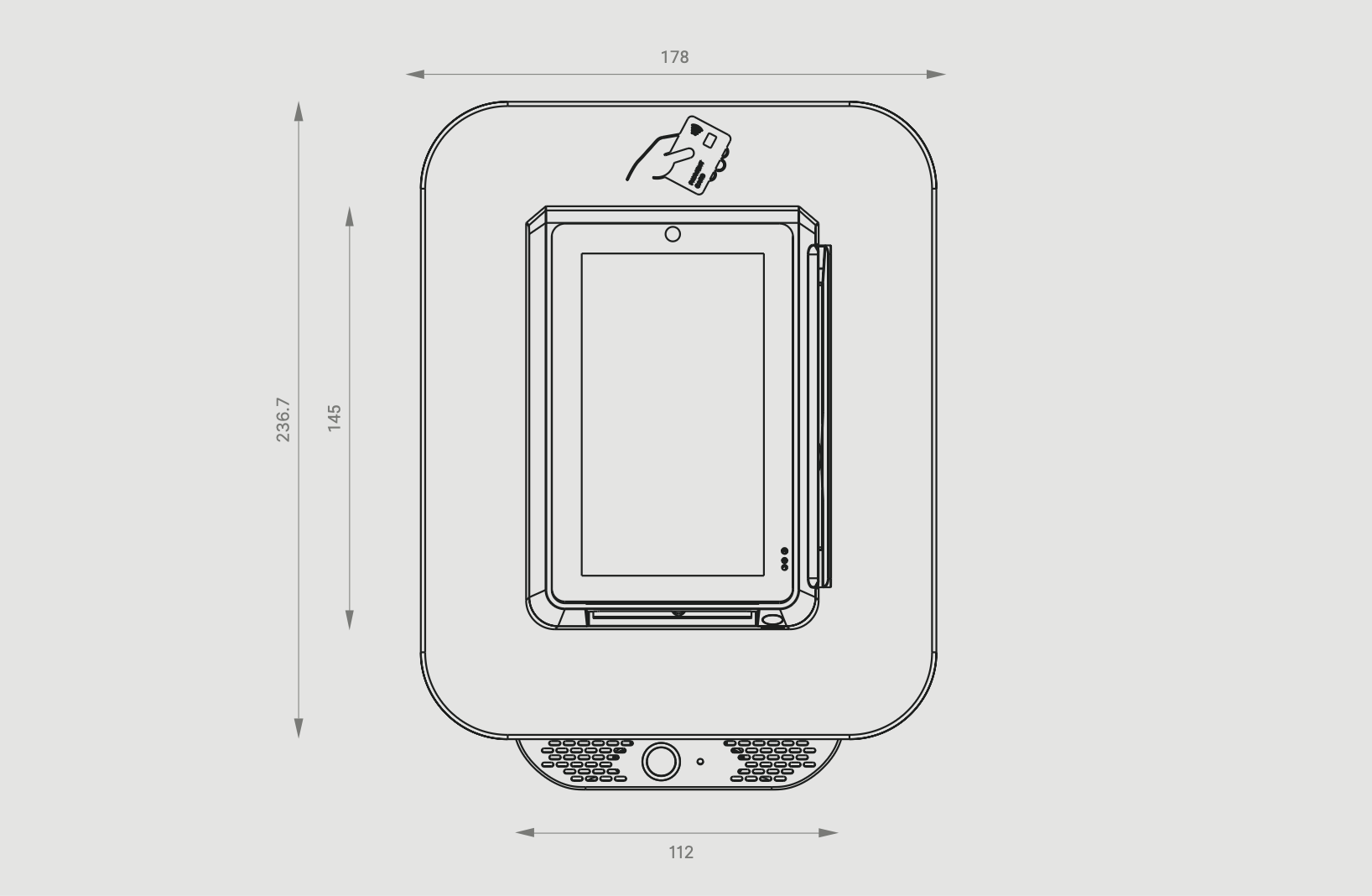

| DIMENSIONS | 178 x 236.7 x 108 mm |
|---|---|
| DISPLAY | 5” TFT Wxga 720x1280 |
| PAYMENT SYSTEM | All-in-one payment terminal PCI 6.0 |
| OPERATING SYSTEM | Android 10 |
| PROCESSOR | Cortex A53 |
| POWER | 45 W @ 230 Vac |
| NOMINAL VOLTAGE | 230 VAC ± 10% |
| HARD DISK | 64GB |
| SERIAL PORTS | N° 2 RS-232 |
| PORTS | USB OTG | 1 LAN | 1 MDB Master & Executive |
| AUDIO | 1 speaker |
| KEY/BUTTONS | 1 x Reset key | 1 x Service key (on the reverse side) |
| QR SCANNER | 0.3 MP | Reads 1 D & 2D codes |
| CAMERAS | 2MP Front |
| CARD READERS | Chip&PIN | NFC Contactless | Magnetic Stripe |
| MEMORY | 8GB Flash + 1 GB LPDDR3 | Optional: 2GB LPDDR3 |
