smartOPT | Maxi
Secure. Accessible. Vertical.

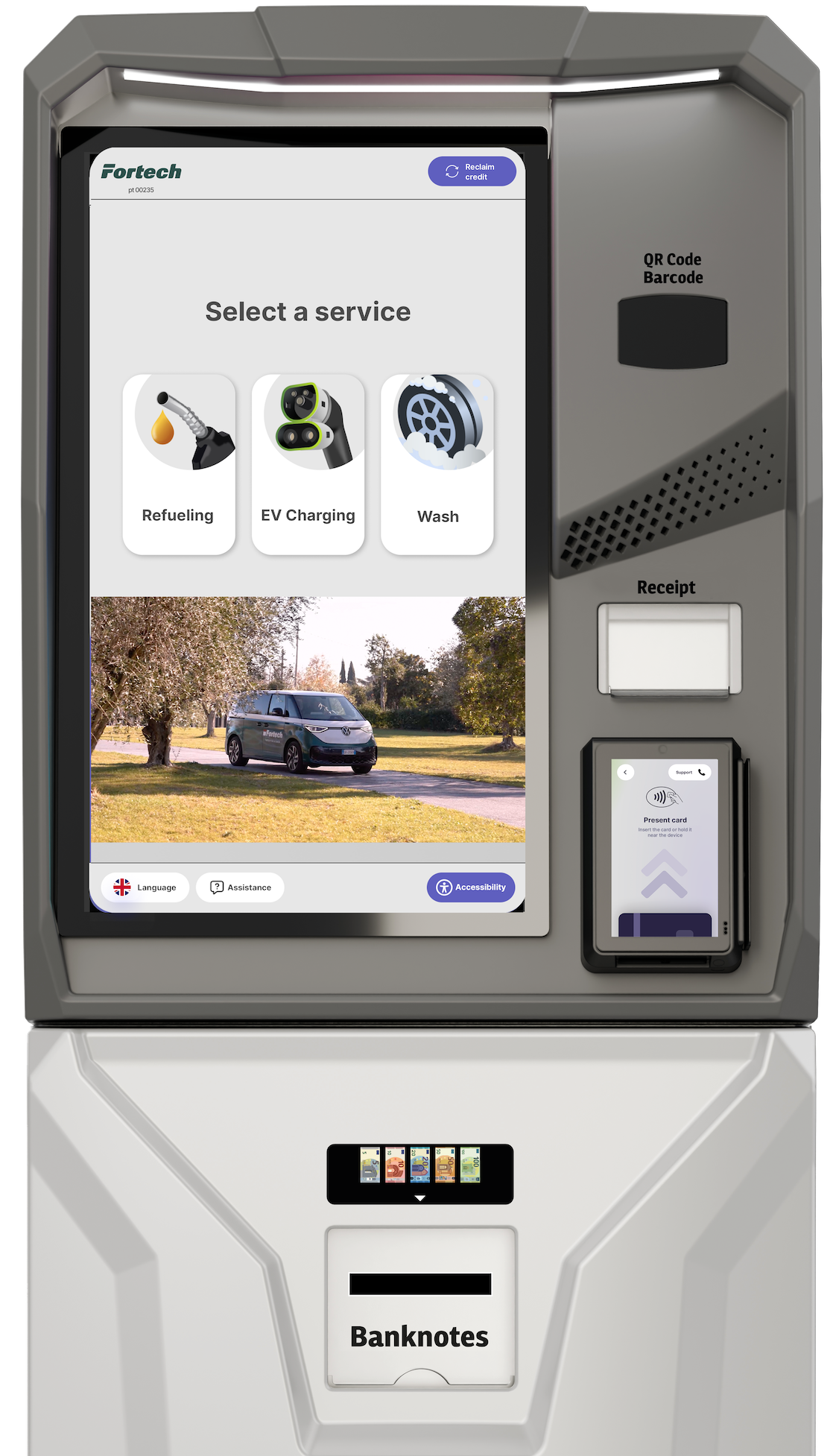

The new smartOPT forecourt terminal by Fortech redefines the way customers interact with the service station. Featuring a 21-inch full-touch display in a 9:16 vertical format, voice guidance and an advanced user interface, the system delivers a seamless, intuitive and visually immersive user experience.
PCI 6.0 Payments and D2 Armored Safe
The multifunction payment terminal features a touchscreen display and supports chip, magnetic stripe and contactless card payments through a single all-in-one device. The armored safe meets the highest security standards, ensuring maximum protection.
Step-by-step Guided Wizard
The intuitive interface guides users through the entire services purchase process, from selecting a dispenser and choosing a payment method to requesting an e-invoice. A progress bar at the top of the screen guides users through the process, clearly showing the steps remaining until completion.
Vertical by design, human by experience
Protected by anti-vandal glass, the large vertical screen provides maximum readability in any lighting condition and creates new opportunities for impactful communication. Videos, banners and promotional content become a seamless part of the customer experience.
Thanks to the Dynamic Window, it’s possible to access the support menus without affecting the main operating area, simply by resizing the primary workspace. The tutorial videos show how to resolve the most common issues.
The large vertical display supports full-screen video playback. While customers refuel, the terminal transforms into a powerful digital advertising platform, capturing the attention of both customers and passing drivers.
Natively Accessible
smartOPT | Maxi is the first refueling terminal designed in accordance with accessibility standards. Its user interface includes an “Accessible Mode” that enables full terminal navigation through buttons conveniently positioned at the bottom of the display. The screen height has also been carefully designed to ensure comfortable and intuitive use for wheelchair users and people with reduced mobility.
Technical Data Sheet
| DISPLAY | 21” flat touchscreen display with anti-vandal glass and 9:16 aspect ratio |
|---|---|
| BANKNOTE ACCEPTOR | JCM EBA 40 |
| ACCEPTED BANKNOTES | 5, 10, 20, 50, 100 € (other currencies accepted) |
| RECEIPT PRINTER | Thermal printer ready for printing QR code and barcode |
| POWER SUPPLY BACK UNIT | With supercapacitor technology instead of batteries, it withstands frequent and repeated power outages. Manages independent shutdown of peripherals. |
| THERMOSTATIC BOARD | Connected to the proprietary board, it allows remote temperature monitoring and adjustment |
| LIGHT AUDIO MOTION SENSOR | Lighting, audio, motion and presence detector with astronomical clock, integrable with the system's alarm |
| CENTRAL UNIT | Solid-state drive, CPU Intel i5, RAM 4GB |
| BACKUP SYSTEM | Remote Recovery Option |
| FIELD CONTROLLER | smartBOX |
| SAFE | Armored safe certified EN1143 Class D2 |
